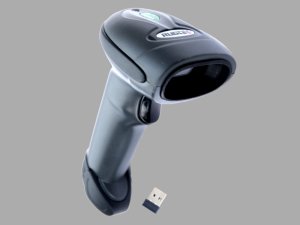

CD3200-BT E
Decode the most widely used 2D barcodes seamlessly. Compatible with all POS systems and ideal for retail environments, this Bluetooth device offers easy plug-and-play functionality with no drivers required, ensuring straightforward operation. Designed with ergonomics in mind, it provides a comfortable user experience. Equipped with the latest decoding technology, it delivers fast and efficient scanning performance.
Features
• 640 (H) x 480 (V) pixels resolution
• Green LED indicator, buzzer, and motor vibration alerts
• Operates in both manual (handheld) and automatic (hands-free) modes
• 300 scans per second
| Specifications | CD-3200BT E | ||
|---|---|---|---|
| OS | Windows /iOS / Android | ||
| Image Sensor | CMOS | ||
| Image (pixels) | 640 (H)*480 (v)pixels | ||
| Light Source | Aiming: 625 nm LED; illumination:4000K LED | ||
| Scan Mode | Handhand (Manual) / Handfree (Automatic) | ||
| Frame Rate | 300 scans / seconds | ||
| Scan accuracy | ≥4mil@ Code39 | ||
| Print Contrast | ≥20% | ||
| Visual Indicator | Red and Blue LED Light ,Buzzer | ||
| Interfaces | USB, Bluetooth | ||
| Scan Angle | Left and right:± 55 °, Front and rear:± 55 °, Rotate:360 ° | ||
| Roll / Pitch /Yaw | Roll 65 degree, pitch 35 degree, yaw 45 degree | ||
| Field of view | 32° horizontal, 24° vertical | ||
| Transmission Mode | Wired / Wireless Transmission | ||
| Dimension (L x W x H) | 179*68*94(mm) | ||
| Weight | 203g(with cable) | ||
| Cable | Standard 1.8M straight | ||
| Power Parameter | Input Voltage: 5VDC±5%, Working corrent: 150mA | ||
| Scan distance | 20-350mm @ EAN 13mil PCS=100%;5-170mm @ QR 20mil PCS=100% | ||
| Environmental parameters | |||
| Operating Temperature | 20°C--+ 60°C | ||
| Working Humidity | 5% to 95% relative humidity, non-condensing | ||
| Working Humidity | 5% to 95% relative humidity, non-condensing | ||
| Storage Temperature | 40°C~+70°C | ||
| Electrostatic protection | ±8 kV(Direct discharge) | ||
| Ambient brightness | 0~100,000Lux | ||
| Drop Durability | 2M | ||
| Safety regulations | CE (EN 55032:2015; EN 55035:2017), ROHS, EN62368-1:2014+A11:2017, FCC PART 15 CLASS B | ||
| Decoding Capability | |||
| 1D | EAN 13, EAN 8, EAN 128, UPC-A, UPC-E0UPC-E1, Code128,Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code11,MSI-Plessey, Standard 2of 5, Plessey, China Post, Code 16K, GS1 Databar(RSS-Expand, RSS-Limited, RSS-14,GS1 Composite) | ||
| 2D | QR, PDF417, DataMatrixECC200, Aztec, HanXinCode, Maxicode,Micro QR, Micro PDF417 | ||
| Battery | Battery Capacity: 2000mAh, Working time: 12h (continuous scanning) | ||
FAQs
The Rugtek CD3200-BT E scans 2D barcodes using Bluetooth. It works well with POS systems and in stores reading barcodes.
It reads the most common 2D barcodes. This makes it useful in stores, shipping, and cash registers.
Yes, the Rugtek CD3200-BT E fits with all POS systems. It works well in grocery stores, shops, and at checkout.
No, you can just plug it in and use it. You don't need to install drivers or extra software.
It gives you several signs to let you know, such as a green light, a beep, and a vibration. These alerts happen every time it reads a barcode.
Yes, you can use the scanner by hand or set it up to work on its own. This makes it useful for different store setups and cash registers.
The Rugtek CD3200-BT E scans 300 times each second. This speed helps it read barcodes.
Yes, this scanner works well in busy stores and warehouses. It scans fast and you can use it without holding it, which makes it easy to use for long periods.
You can buy the Rugtek CD3200-BT E barcode scanner from sellers that Rugtek trusts, online shops, or straight from Rugtek's website.
The scanner uses Bluetooth, so it doesn't need wires to work. This makes it great to use at cash registers, in warehouses, and when you need to move around while scanning.
