| Resolution | 203dpi (High Resolution and High Speed) | ||
|---|---|---|---|
| Printing Method | Thermal Transfer/Direct Thermal | ||
| Printing Speed | 4-5 Inch/s | ||
| Max Printing Width | 104mm (4.09’) | ||
| Max Printing Length | 2286mm (90’) | ||
| Interface | USB | ||
| Print Head (abrasive resistance) | 100km | ||
| Commands | TSC, ZPL | Ribbon Length | Max300M |
| Ribbon Width | Min. 30mm: Max. 110mm | ||
| Ribbon Core Size | 25.4mm~38mm | ||
| Ribbon Rolling Up Method | Outward Rolling | ||
| Max Media Roll OD | 127mm (5”) | ||
| Mix Media Roll ID | 25mm | ||
| Media Paper Type | Continuous, gap, fan hold, black mark. | ||
| Media Rolling Up Method | Printing side outward Rolling | ||
| Media Width | Max 120mm (4.72”), Min: 20mm (0.78”) | ||
| Media Roll Core Size | 25.4mm~38mm | ||
| Media Gap | Min.2mm | ||
| Media Gap | Min.2mm | ||
| Media Thickness | 0.058mm~0.305mm | ||
| Label Length | 10mm~2286mm | ||
| Accessories | External Media Holder (Optional) | ||
| Editing Software | NICELABEL SE | ||
| Driver | Windows 2000XP, Xp, Win7, Win8 Wndows Server 2003&2008 | ||
| Linux ( By Request) | |||
| Character Set | GB18030 | ||
| Print Font | ASCII Font A: 12*24 | ||
| ASCII Font B: 9*24 | |||
| Code39, Code93, Code128 subsets A, B, C, Codebar, Interleaved 2 of 5, | |||
| 1D code | EAN-13, EAN-14, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits | ||
| Add-on, MSI, Plessey, POSTNET, China POS, ITF14 | |||
| 2D code | QR Code | ||
| Graphics Processing | Support BMP/PCX/BAS | ||
| Temperature | Working: 5-45oC, Storage: -10~50oC | ||
| Humidity | Working: 25%~85%, Storage: -10%~90% | ||
| Power Supply | Input: AC 110V/240V, Output: DC24V/2.5A, 60W | ||
| Storage | 4MB | ||
| Dimension | 223*286*169mm | ||
| Printer Weight | 2.35kg | ||

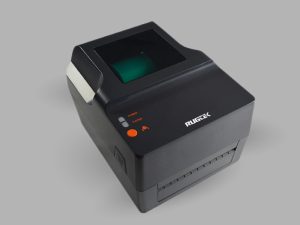

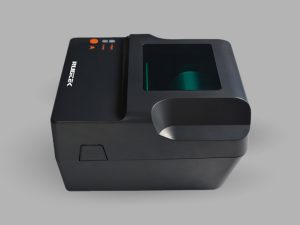

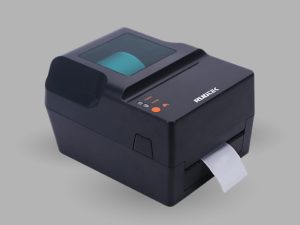

RP 76 – IV
Rugtek brings you a printer designed for simplicity and efficiency, boasting an array of key features. The USB interface ensures seamless connectivity, allowing for easy integration with your devices. Operating at a speed of 127mm/sec, this printer delivers swift and timely output, enhancing your workflow. With the innovative Bad Print Head Dot Auto detect feature, you can count on consistent print quality, as the printer identifies and addresses any potential issues. Whether for business or personal use, Rugtek’s label printer offers a straightforward and reliable printing solution, ensuring every print job is executed with precision and ease.
Features
• USB Interface
• Speed 127mm/sec
• Bad Print Head Dot Auto detect
DRIVER
