| Printer Type | Receipt printer | ||
|---|---|---|---|
| Print Method | Direct Thermal | ||
| Print Width | 48mm & 72mm | ||
| Paper Width | 57.5mm & 80mm/203dpi | ||
| Paper Roll Size (W x D) | 57.5 - 80mm | ||
| Label thickness Roll dia | 0.06~0.15mm 80mm max/ Easy Paper Loading | ||
| Paper Type | Continuous / marked | ||
| Print Head Life | 160km | ||
| Print Font/Barcode | Support any Languages | ||
| Flash | 4MB | ||
| RAM | 8MB | ||
| Color | Black | ||
| Cutter | Auto-Cutter with Selectable Full or Partial Cut or Tear off | ||
| Cutter lifetime | 1500000 cuts | ||
| Media Type | Receipt paper/Multiplex Ticketing (Black Mark Sensor) / Linerless Printing | ||
| Power Source | 24V/2.5A | ||

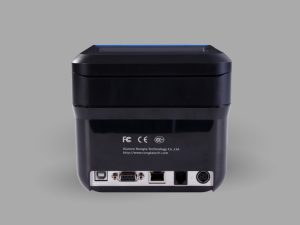

| Interface/Connectivity | Default USB+SERIAL+Ethernet | ||
| Driver Support | Windows / Linux / OPOS | ||
| Printing Command | ESC/Windows Driver/OPOS | ||
| Barcode & Graphic Support/Other Features | Big Gear Long Life, Durable Performance, Wall hanging option, | ||
| Flash light when receive order, Voice reminding (Optional), NFC Function (Optional) | |||
| Barcode Fonts and Graphics Support | 1D: UPC-A, UPC-E, EAN-8, EAN-13, CODABAR, Code 39, Code 93, ITF, CODABAR | ||
| 2D support | PDF 417, QRCODE, GS1 | ||
| Font Support | Font A, Font B | ||
| Character set | 95 Alphanumeric, 13 types International Characters | ||
| Graphics printing | Bitmap Image Downloading and Direct Bitmap Image Print | ||
| Power Adapter | External Power Adapter 100-240VAC, 50- 60Hz, | ||
| 24V ± 5% DC, average current 2A | |||
| Sensors | Paper End Sensor, Top Cover Open Sensor | ||
| Printing Dimension (LxWxH) | 200*146*140mm | ||
| Working temperature: 0~40°C | |||
| Environment | Storage temperature: -20~70 | ||
| Working humidity: 20~85%; | |||
| Storage temperature: 5~95% | |||
FAQs
The Rugtek RP80 – V1 receipt printer offers linerless printing, a 72mm print width, a high-speed printing capability of up to 350mm/sec, a resolution of 203 dpi, and comes with a default USB interface. Optional interfaces include USB, Serial, and Ethernet.
Linerless printing means the printer does not require a backing liner for the paper, reducing waste and costs. It also allows for more flexible label lengths and can improve operational efficiency.
The Rugtek RP80 – V1 can print receipts at a speed of up to 350mm per second, ensuring quick and efficient transaction processing.
The Rugtek RP80 – V1 has a default USB interface and optional interfaces, including USB, Serial, and Ethernet, to cater to different connectivity needs.
The Rugtek RP80 – V1 has a print resolution of 203dpi, providing high-quality and clear printouts.
The print width of the Rugtek RP80 - V1 is 72mm, making it suitable for a variety of receipt printing applications.
The Rugtek RP80 – V1 can be integrated with other devices through its various interface options, including USB, Serial, and Ethernet, allowing for seamless connectivity in different environments.
The Rugtek RP80 – V1 enhances workflow efficiency with its high-speed printing capabilities, linerless printing feature, and versatile connectivity options, ensuring quick and reliable performance.
Retail, hospitality, and logistics industries can benefit from the Rugtek RP80 – V1 due to its high-speed printing, quality output, and flexible connectivity options.
Yes, the Rugtek RP80 – V1 is designed for easy setup and use, with intuitive controls and multiple connectivity options to simplify integration into your existing systems.
