| Image(Pixels) | 640 pixels(H)*480 pixels(V) | ||
|---|---|---|---|
| Light Source | Aiming: 617 nm LED illumination: 6500K LED | ||
| 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Hanshin Code, etc | |||
| Barcode Decode | 1D: UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN /ISSN, Code 39 | ||
| (with full ASCII), Codabar (NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF), | |||
| Expanded | |||
| Depth of Field | 40-200mm @ UPC/EAN 13mil PCS=90%; 20-250mm @ QR 20mil PCS=100% | ||
| Scan Angle | Elevation angle 65°/Tilt angle 30°/Declination 55° | ||
| Scan Rate | 350 scan/sec | ||
| Field of view | 34° horizontal and 28° vertical | ||
| Read Resolution | B≥ 5 mil | ||
| Print Contrast | ≥ 25% | ||
| Visual Indicator | Red and blue bi-color LED lights, buzzer | ||
| Communication Interfaces/Distance | TTL-232, USB | ||
| Power | 5VDC, 170mAh | ||
| Dimension/Weight | 173mm(L)*67mm(W)*94mm(H)/220g(W/Cable) | ||
| IP Level & Light Level | IP54, 3mtrs drop durability / On 100,000 LUX | ||
| Environmental parameters | Operating temperature -20°C~+60°C Working humidity 5%~95% non-condensing | ||
| Accessories | Optional Stand (Auto Sensor) | ||
| Application | CD 3200U - Retail, Logistics & Health care | ||

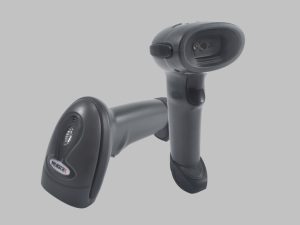

CD3200 – U
Introducing the latest addition to the RUGTEK series: POSIFLEX’s cutting-edge “2D QR Barcode” Scanner, equipped with a remarkable million-pixel scanning capability. This scanner goes beyond traditional boundaries, effortlessly capturing barcodes from mobile devices and even curved surfaces. The BT/Wi-Fi variant offers unparalleled convenience, allowing you to set up inventory and scan up to 2500 EAN codes offline. Seamlessly compatible with POS systems, this Bluetooth barcode scanner is tailored to meet the needs of modern businesses, whether in the realm of POS billing or logistics operations. Offering both wired and wireless options, this 2D barcode scanner is as affordable as it is versatile. Its intuitive Plug & Play functionality ensures easy integration with mobile devices and tablets, supporting both Android and iOS platforms. Revolutionize your scanning experience with a solution that combines innovation, flexibility, and affordability.
Features
• POSIFLEX launches a million pixels fast 2D Barcode Scanner in the RUGTEK series.
• Scans Barcode on mobile & curved surfaces.
• Bluetooth /Wi-Fi variant can be set up inventory made to scan 2500 EAN codes offline.
• POS compatible Bluetooth barcode scanner.
• Wire-free operation POS billing or logistics operation.
• Affordable 2D Barcode scanners wired & wireless.
• Easy Plug & Play use with mobile/tablets etc (Android & iOS)
